Drone roof inspections at a Co. Carlow shopping estate

Inspecting a busy commercial estate, without closing it

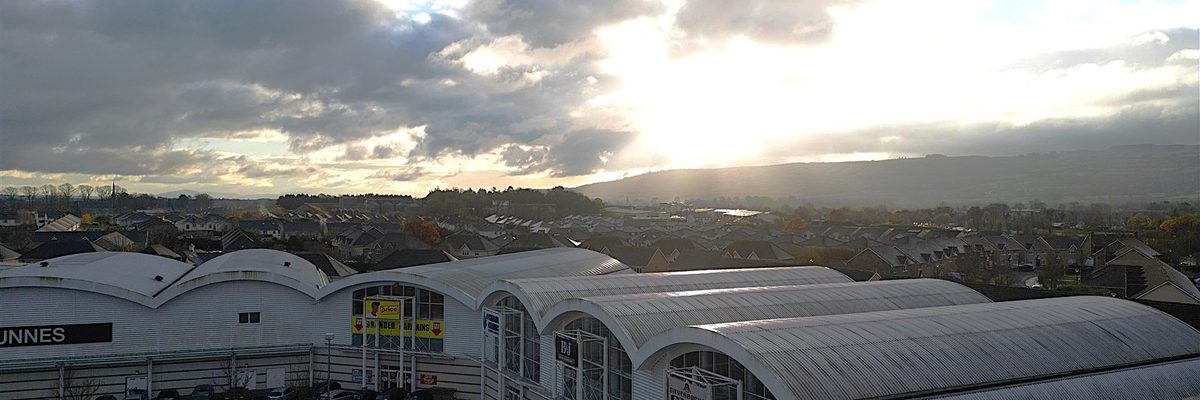

A large commercial shopping estate in Co. Carlow, with multiple buildings, multiple units, and roof structures that vary across the site, needed a thorough condition survey across all seven of its buildings. The challenge was straightforward to describe but harder to solve: a shopping estate is never empty. Closing the site to carry out the inspection was not a practical option, and a conventional manual survey requiring scaffolding or access equipment would have made that unavoidable.

Engineers With Drones reviewed the site, confirmed it was suitable for drone operations, and planned the deliverables with the client before mobilising. The solution was to use the smallest, quietest drone available, one that could operate legally and safely in an environment where shoppers were present throughout.

A sub-250g drone built for busy environments

The key to making this inspection work at a live commercial estate was drone selection. A sub-250g C0 class drone, very small, very lightweight, and extremely quiet, was used for the entire job. At this weight class, the regulatory framework permits flight over people without requiring them to clear the area, and the physical characteristics of the drone make that permissibility practical rather than just theoretical.

As Bob Foley, founder of Engineers With Drones, explains: "Utilising that very, very, very small drone, we were able to safely fly over people without putting them in danger, and also it meant we kept a very low profile at the height we were flying at. It was impossible to hear the drone from the ground — it was just so quiet and small and close — but still we were able to get excellent imagery."

Operating close to the roof surface, the drone is effectively invisible and inaudible to anyone at ground level. A shopper walking below would have no indication that a roof survey was under way directly above them.

How the inspection was conducted

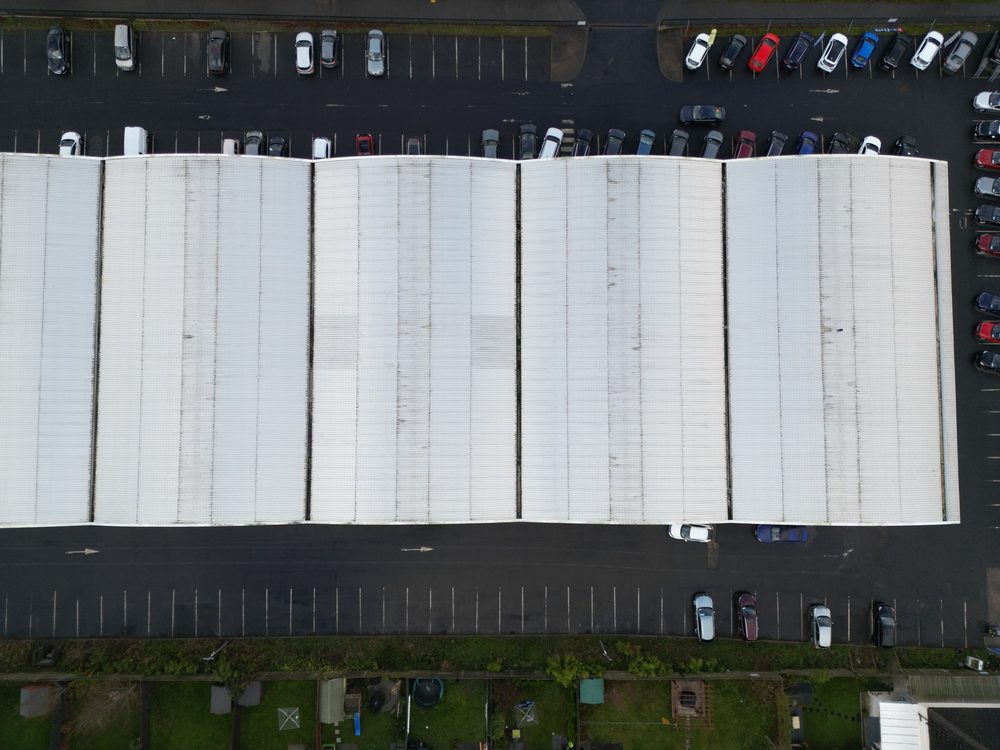

On site, the inspection followed the same systematic approach used for all commercial roof surveys. "With all roof inspections, the first thing you want to do is get overview," Bob explains. An overview pass of each building is captured first. Back in the office, this overview provides the spatial context needed to understand exactly where each subsequent defect image was taken. Without it, a close-up image of a defect can be difficult to locate on the roof.

Once the overview was captured, the team moved to the detailed phase: a "systematic campaign of capturing the entire roof in detail, looking for any and all defects, cataloguing them, maybe taking some notes in the field while you're there, and then moving to the next roof and then continuing that until everything we needed was captured."

That process was repeated across all seven buildings. Once all data was captured and its integrity verified, the team returned to the office to produce the report.

Managing privacy at a busy commercial site

Commercial sites are rarely empty, and a shopping estate with shoppers, staff, and delivery vehicles moving through it throughout the day is a public environment. Broad aerial imagery of a site like this would inevitably capture personal data — not just identifiable images of people, but also vehicle registration plates, property details, and any other information that could be linked to an individual. Under GDPR, all of these are personal data, and all of them need to be addressed before an inspection begins.

The approach in these environments is straightforward: the drone is flown close to the roof surface with the camera oriented towards the building fabric, keeping people, vehicles, and the surrounding site out of frame entirely. Every shot is framed so that only the roof structure is visible, with no personal data of any kind captured at any point during the inspection.

This eliminates the GDPR exposure without any operational compromise. The client receives a complete inspection dataset with no privacy liability attached.

The PDF condition report

Once all fieldwork was complete and the imagery verified, Engineers With Drones converted the raw drone data into a client-ready PDF condition report. The report is designed so that anyone presented with it can understand the findings without specialist knowledge.

For each defect identified, the report includes an image, a plain-English description of the nature and location of the defect, and a severity rating. "Raw imagery into an understandable deliverable — in this case a PDF report — that anybody who would be presented with that report could understand the nature of the defect, the severity of it," Bob explains.

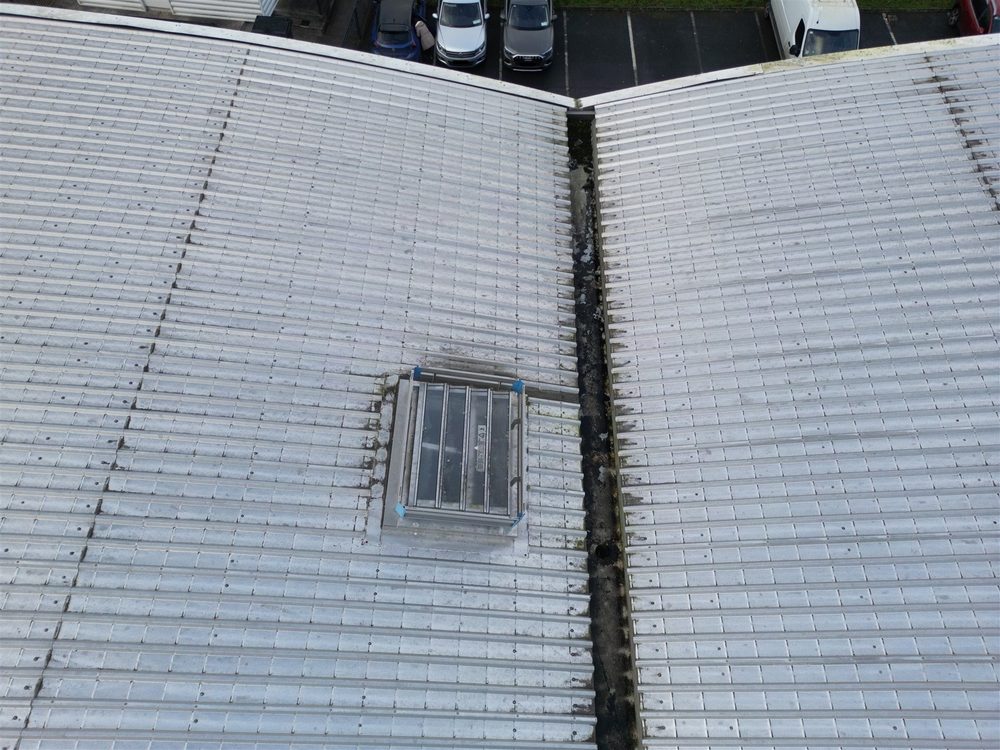

The inspection identified a range of defects across the seven buildings, including leaks, blocked gutters, and debris accumulation. With each issue clearly documented and rated, the client had a precise action list: exactly which defects needed immediate attention, and which could be monitored over time.

Seven buildings surveyed in a single day

Engineers With Drones completed the full roof condition survey across all seven buildings in one day on site. The estate remained open throughout. No scaffolding was erected, no access equipment was needed, and no shoppers or tenants were asked to move.

The client received a detailed PDF condition report covering every roof on the estate, with defect imagery, descriptions, and severity ratings, giving them a clear, actionable picture of the roof condition across all seven buildings. Leaks, blocked gutters, and debris accumulation were all identified and documented, and the client knew exactly what needed to be done and where.

The use of a sub-250g C0 class drone was what made this possible. In an environment where access restrictions were not practical, the drone provided complete roof access, and because it was inaudible at ground level, the entire inspection ran without any disruption to the business below.
